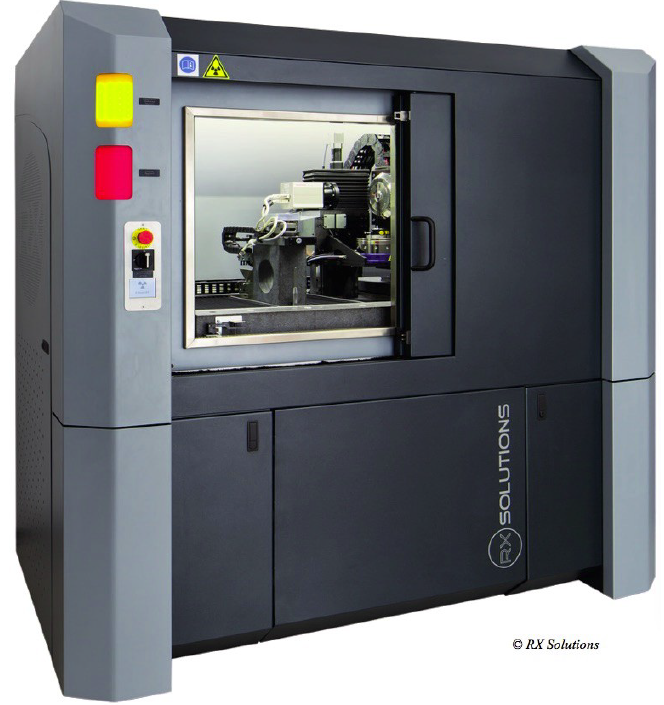

This X-ray tomograph from Rx Solutions enables the high-resolution characterization of materials. It was commissioned in April 2013. It is equipped with a "nanofoyer" Hamamatsu tube which has the distinction of being able to work with 2 types of filaments: · tungsten (resolution 0.75 μm, 160 kV) · LaB6 (resolution 0.25 μm, 100 kV) It has 2 types of detector (Hamamatsu), a very high resolution CCD camera adapted to low energies (matrix of 4000 x 2624 pixels, pixel size 5.9 μm) and a flat sensor ( 2400 x 2400 pixels of 50 μm) allowing the acquisition of high-resolution images with higher energy (up to 160 kV). The imaging system is mounted on a granite optical table supported by 3 air cushioned pads. The motorized air-bearing rotation stage allows a very precise rotation of the sample necessary for submicron resolution. Do not hesitate to contact the manager of the platform for more information.

Depending structure

MATEIS

345 Avenue Gaston Berger
69100 Villeurbanne
+33(0)4 72 43 83 82

infos : Website

Other's Laboratory/Plateforme

Plateforme de frittage

Micro-tomographie

Justine Papillon

Responsable de plateforme

Depending structure : MATEIS
Federation :

Ingelyse, Clym, ICL

Lab tutorship :

UCBL/INSA

17, avenue Jean Capelle
Bâtiment Jules Verne (sous-sol)
69621 VILLEURBANNE Cedex

Full support :
Continuous education :
Access with light support :

---

Open to academic :
Open to enterprises :
