X-ray Tomographe GE Phoenix v|tome|x s - Conventional 3D
- In situ
- Conventional 3D
- In situ

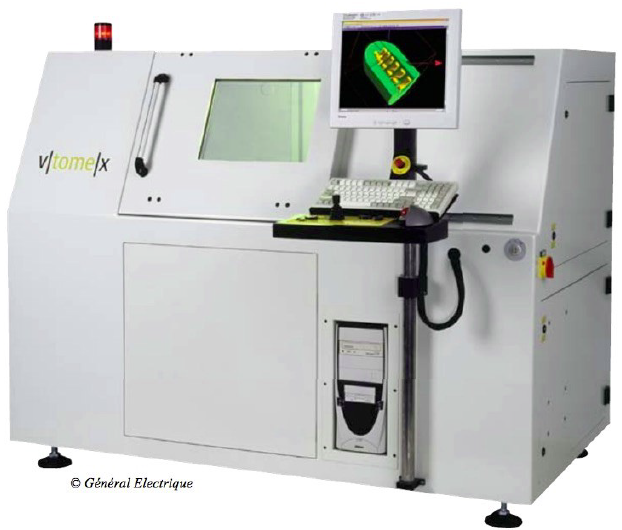

This X-ray computed tomography equipment allows the 3-dimensional characterization of materials in a non-destructive way. This is the v | tome | x s model from GE Sensing & Inspection Technologies Phoenix X | ray. It was commissioned in July 2006. The system features a 160 kV RX tube with a firing size of up to 1μm. The Varian Paxscan detector has an active surface of 250 x 200 mm with a matrix of 1920 x 1536 pixels (pixel size = 127 μm). The large size of the radiation protection enclosure allows the insertion of in-situ testing devices (mechanical stressing machines, heating systems, freezing devices, etc.). Do not hesitate to contact the manager of the platform for more information.
Contact Task Facility Manager (TFM)
04 72 43 63 81
Depending structure
Other's Laboratory/Plateforme
Laboratory : Plateforme de Tomographie X
Federation :
Ingelyse, Clym, ICL
Lab tutorship :
UCBL/INSA
17, avenue Jean Capelle
Bâtiment Jules Verne (sous-sol)
69621 VILLEURBANNE Cedex
Continuous education :
Access with light support :
Open to academic :
Open to enterprises :
